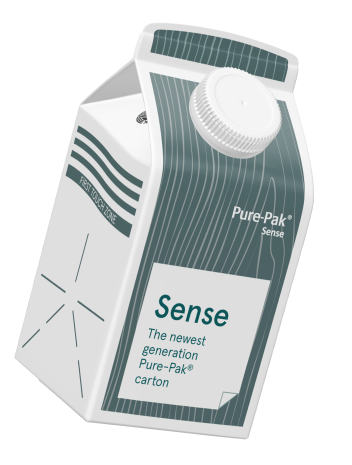

Pure-Pak® cartons, with their emotional benefits, functionality and food safety give products a premium appeal for stand out on shelf. The board color is off - white (triplex) and yields a smooth feeling and an excellent printing result.

Designs suitable for our lithographic process can feature high resolution images, detailed vector graphics and color areas as well as finer text.

Video file

Clear images, bright colors

The main purpose of EloChrome is to depict vibrant images by producing more accurate colors and offering a wider color gamut compared to a standard CMYK printing process.

Colors created by mixing of 2 or 3 EloChrome inks can be clearer, stronger and brighter when compared to printing with a single spot ink.

EloChrome
CMYK

Converting colors

Artwork can be delivered using CMYK and/or Pantone spot colors. In all cases, our pre press specialists will convert the delivered colors into EloChrome color build-ups. At the same time we pay special attention to matching the delivered values and/or color targets as closely as possible. Some spot colors, however, can be difficult to match using a standardized extended gamut system such as EloChrome (e.g. pastels, fluorescents and metallics).

We encourage you to contact our repro specialists if considering the use of such tints.

Pantone Guide is used for color matching. The target spot color needs to be available in the Solid Coated Pantone Plus Series Formula Guide.

Process-specific requirements and challenges

Trapping

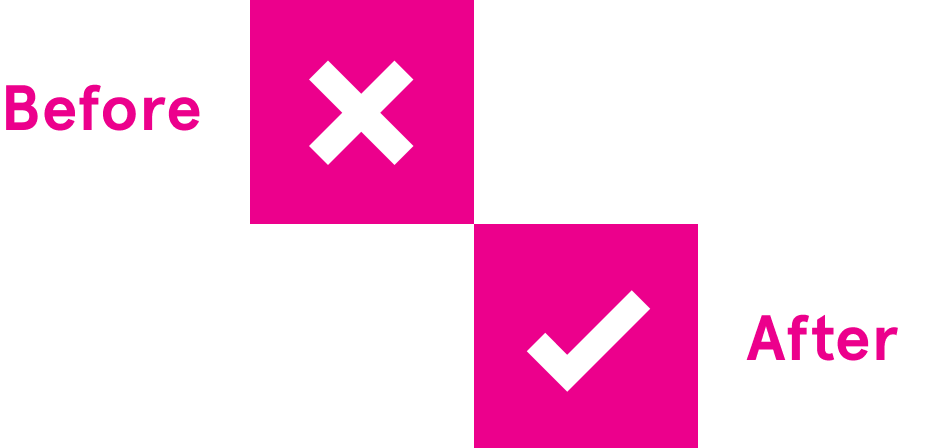

Even in a high-performance print process such as litho some register variation may occur. Trapping or cutback is applied in order to prevent visible color-to-color register deviation and unsightly white lines in printing. The term trapping relates to instances where two colors meet. The lighter color is slightly expanded into the darker to create an overlap. This yields a darker outline.

Trapping blue
Trapping cyan

Designers are not required to make allowances for trapping in the supplied artwork. Elopak will ensure that the correct process-specific trapping is applied where necessary. Depending on design complexity, trapping or cutback may vary from 0,10 mm up to 0,20 mm.

Adherence to print specification allows Elopak prepress specialists to correctly apply trapping and avoid the side-effects of print-to-print registration variance.

Text requirements

Text can be defined either in a single pure EloChrome color (the safest choice for small texts), or in a combination of colors (maximum 3 colors).

For single-color positive text, we require a minimum 5 pts sans-serif font (minimum line width 0.15 mm). For multicolored text (maximum 3 colors) and negative text on a single-color background, we require a minimum 6.5 pts sans-serif font (minimum line width 0.2 mm). Negative text on a multicolored background requires an 8 pts sans-serif font (minimum line width 0.25 mm). We recommend that text be as large as possible to ensure optimum legibility.



Font

min size

Line

min thickness

Single color positive text

Aa

5pts

sans-serif

0.15mm

Composite color and negative text on a single-colored background

Aa

6.5pts

sans-serif

0.2mm

Negative text on a multi-colored background

AaAa

8pts

sans-serif

0.25mm


Important

All text in the supplied artwork must be converted to paths or outlines. For contingency, please include all used fonts in the delivered artwork package, in case of text corrections at a later stage.

Images and vector graphics

Logos should be delivered as vector graphics. Please make sure that logo text size and line thickness is within the required print specification.

Preferably, images are to be delivered as either .tiff or .psd files, using CMYK color space, and should not be color managed (color profiles need not be embedded). Minimal required resolution is 300 dpiSee more. Please leave image layers unflattened.

File type

extension

.tiff or .psd

Colors

color management

CMYK

Not color managed

Color profiles need not be embedded

Resolution

minimal required

300dpi

image layers unflattened

Show & Tell

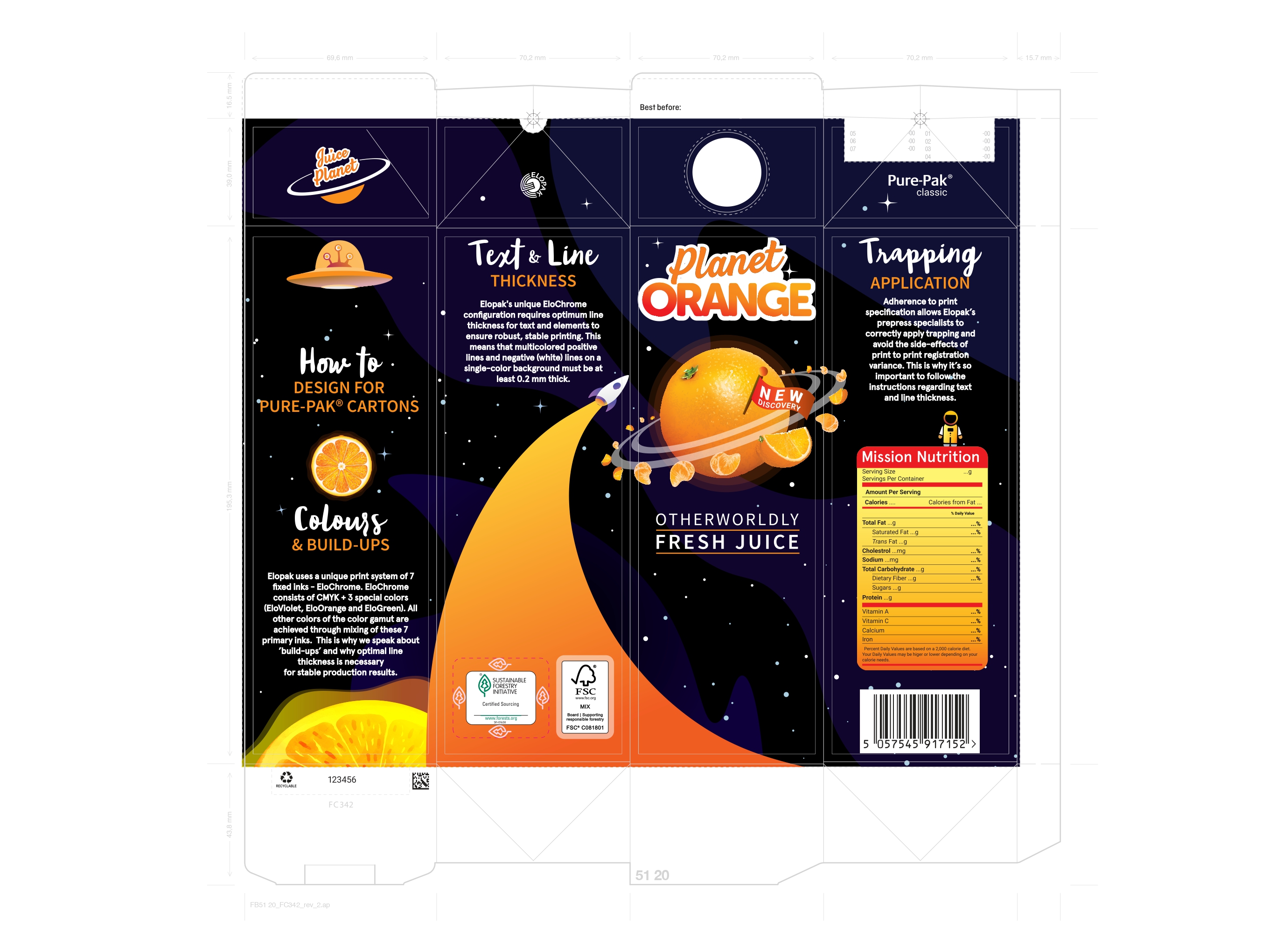

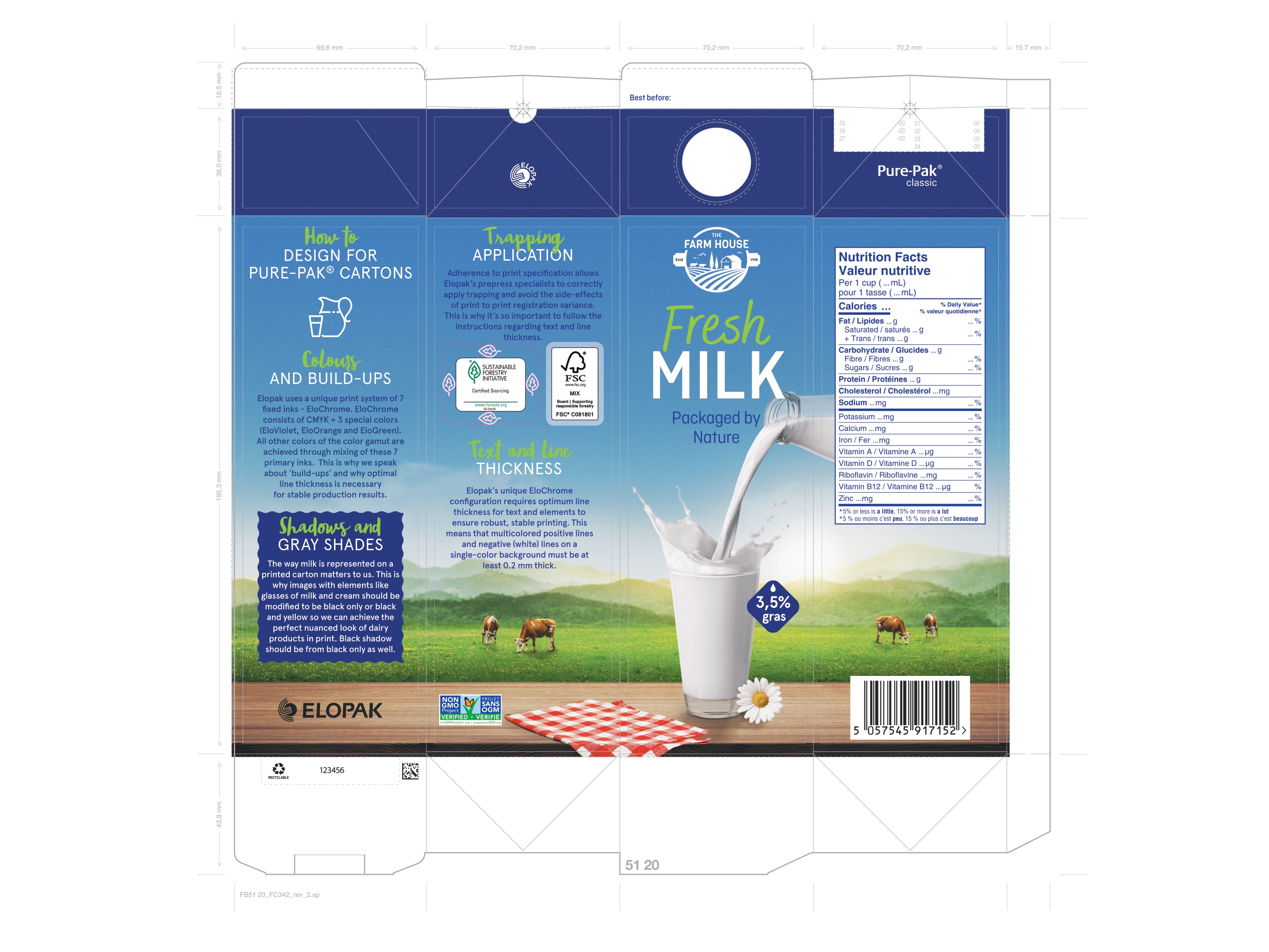

The mockups below will guide you through common design elements and help you to better understand Elopak process requirements.

Please pay attention that these requirements are somewhat different for white boards and Natural brown board. Always consider the printed material first before starting the design process.

Summary table

Screen ruling: 141 lpi

Requirements

Notes

Accepted file types

Print files: PDF

Open files: Adobe Illustrator, Adobe InDesign, ArtPro

Always package links and fonts.

Outline all text.

Document/image color mode

CMYK

No Color conversion.

Don’t include color profiles.

Image resolution

300 dpi

Include layers where applicable.

Illustrator raster effect settings

High resolution 300 ppi

Rasterize gradient mesh objects.

Illustrator PDF compatible file

Yes



PDF compatibility

Acrobat 6, PDF 1.5



Minimum line thickness

Single pure ink: 0,15 mm

Composite color build-up: 0,20 mm

Reversed lines: 0,25 mm

Maximum 3 inks allowed in a composite color build-up.

Minimum text size

Single pure ink: 5 pt sans-serif (stroke width 0,15 mm)

Composite color build-up: 7 pt sans-serif (stroke width 0,25 mm)

Negative text: 7 pt sans-serif (stroke width 0,25 mm)

See all text requirements

Maximum 3 inks allowed in a composite color build-up.

Minimum bar code size

Recommended 100% magnification

EAN-13 37.29 x 26.26 mm

EAN-8 26.73 x 21.64 mm

UPC-A 25.93 x 37.29 mm

See the barcode requirements

Elopak will ensure that all bar codes are in accordance with UPC/EAN certification.

Printing of Pantone colors

Not available.

All colors are converted to EloChrome by the Elopak Repro Department.

About EloChrome standards

digimarc

Elopak’s EloChrome system is fully compatible with Digimarc technology. If you wish to supply a Digimarc enhanced artwork, please contact Elopak Repro for more information on requirements and capabilities.

Color matching

Color matching

Target prints

If there is a demand for reference color match, a hard copy must be supplied together with the relevant artwork.

If no target print is supplied, the reproduction result will be based on standard Elopak color and dot gain profiles.

If a Pantone Guide is to be used for color matching, the target spot color needs to be available in the Solid Coated Pantone Plus Series Formula Guide.
